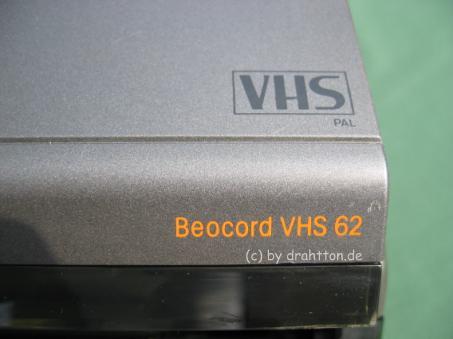

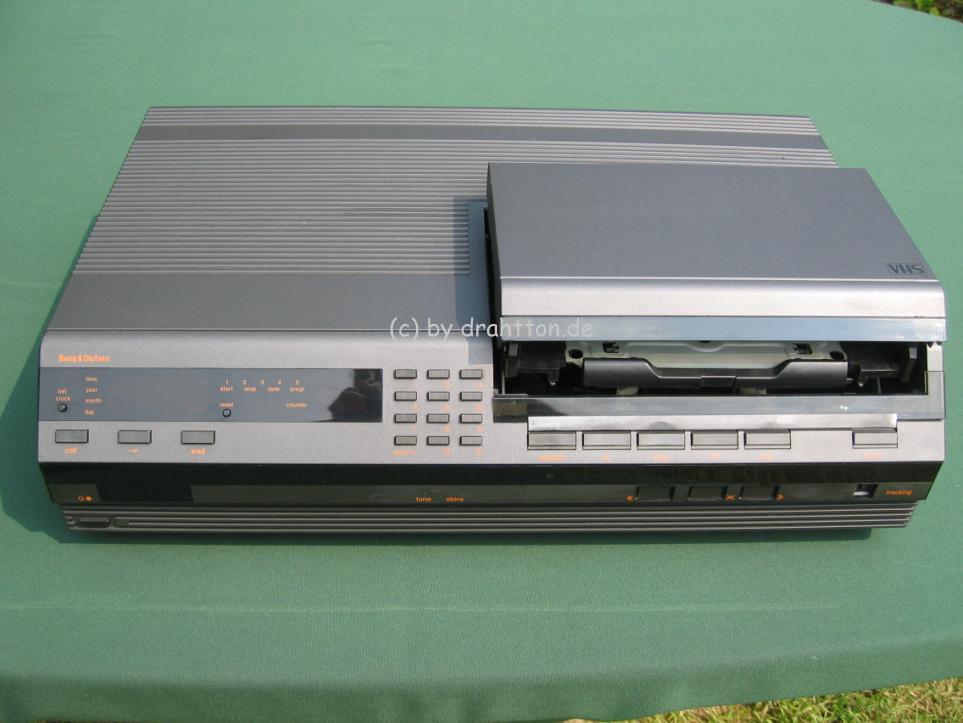

Beocord VHS 62 Type 4475
Beocord VHS 62 Specifications:
Mains voltage 220 - 240 V +/- 10%
Frequency 48 - 62 Hz
Power consumption in ON 30 W
Power consumption in STANDBY 10 W
Ambient temperature + 10 to +35° C
Relative humidity 30 - 80 %
Wind/rewind time: < 300 sec. with E-240
Position of normal end use Horizontal: max:15°
Number of programmes 35 + AV
Number of pre-programmable blocks 5
Maximum period for pre-programming 0 - 30 days or every day
Video: Signal-to-noise ratio > 46 dB (CCIR 421 - 2 annex)
Resolving
power > 3.1 MHz (- 26 dB)
Audio:
Frequency response 40 - 10,000 Hz +/- 8 dB
Wow and flutter < 0.4 % (DIN45507)
Distortion < 6 %
Signal-to-noise ratio > 45 dB (DIN45500)
Tuner:
Band I 48.25 - 105.25 MHz (Ch. E2 - S1)
Band III 112.25 - 294.25 MHz (Ch. S2 - S20)
Band IV/V 471.25 - 855.25 MHz (Ch. E21 - E69)
Modulator:
Adjustable modulation Channel 30 - 40 (543 - 623 MHz
Output voltage 3 mV (RMS) +/- 3 dB
Connections: 21-pin A/V
Audio DIN connector
